CaseIH Farmall 30C Tractors
 |
|
Power: 32 hp
Date of manufacture : 2014 - 2016 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Compact Utility tractor
|
| Original price: | $23,986 (2016 shuttle )
|
| Original price: | $25,831 (2016 hydro )
|
| CaseIH Farmall 30C Power |
| Engine: | 32.2 hp
24.0 kW
|
| Shuttle PTO (claimed): | 26 hp
19.4 kW
|
| Hydro PTO (claimed): | 24.7 hp
18.4 kW
|
| CaseIH Farmall 30C Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS. Cab optional.
|
| Transmissions: | 12-speed synchronized shuttle
|
| | hydrostatic
|

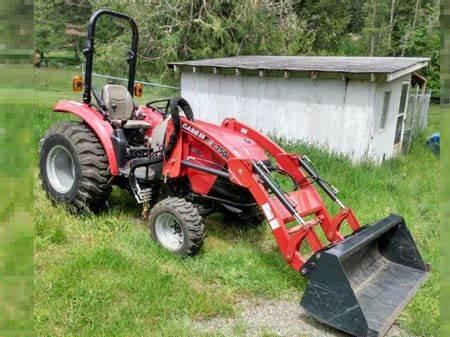

| Photos |
| | CaseIH Farmall 30C photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1 or 2
|
| Pump flow: | 7.3 gpm
27.6 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 1808 lbs
820 kg
|
| Rear lift (at 24"/610mm): | 1433 lbs
650 kg
|
| Rear Arms: | telescopic link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 66 inches
167 cm
|
| Weight: | 3218 lbs
1459 kg
|
| Front tire: | 7x14
|
| Rear tire: | 11.2x24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 85
|
| Battery volts: | 12
|
|
