CaseIH Farmall 31 Tractors

CaseIH Farmall 31
Power: 31 hp
Date of manufacture :
2008 - 2011
Production
Distributor:CaseIH
Manufacturer:Shibaura
Type:Compact Utility tractor
Factory:Dublin, Georgia, USA
Original price:$21,727 (2011 gear ROPS )
Original price:$23,474 (2011 hydro ROPS )
CaseIH Farmall 31 Power
Engine (gross):31 hp
23.1 kW
PTO (claimed):26.5 hp
19.8 kW (gear)
 24.9 hp
18.6 kW (hydro)
CaseIH Farmall 31 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmissions:9-speed unsynchronized gear
 hydrostatic

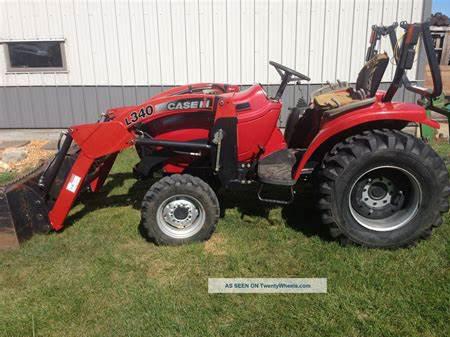

Photos
CaseIH Farmall 31 photos...
Hydraulics
Type:open center
Pump flow:7.2 gpm
27.3 lpm
Total flow:12.3 gpm
46.6 lpm
Steering flow:5.1 gpm
19.3 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at 24"/610mm):1,635 lbs
741 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Mid PTO:optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:63 inches
160 cm
Weight:2511 to 2544 pounds
Front tire:7x14
Rear tire:11.2x24
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:420
Battery volts:12
