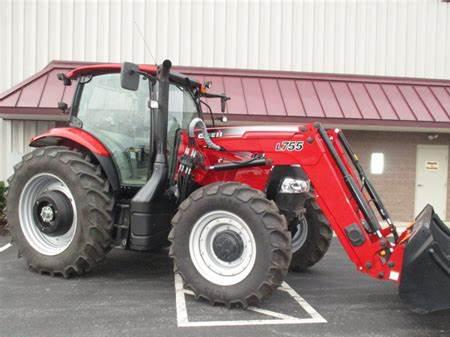

CaseIH Farmall 130A Tractors
 |
|
Power: 130 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Original price: | $68,708 (2015 ROPS 2WD )
|
| Original price: | $85,006 (2015 Cab 4WD )
|
| CaseIH Farmall 130A Power |
| Engine: | 130 hp
96.9 kW
|
| PTO (claimed): | 105 hp
78.3 kW
|
| Drawbar (tested): | 94.17 hp
70.2 kW
|
| PTO (tested): | 117.69 hp
87.8 kW
|
| CaseIH Farmall 130A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Cab: | Two-post ROPS. Cab available with air-conditioning.
|
| Transmissions: | 8-speed power shuttle
|
| | 8-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| Photos |
| | CaseIH Farmall 130A photos... |
| Hydraulics |
| Type: | open center with closed-center load-sensing remotes
|
| Valves: | 2 to 4
|
| Pump flow: | 22 gpm
83.3 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | draft sensing
|
| Rear lift (at 24"/610mm): | 7200 lbs
3265 kg
|
| Dimensions & Tires |
| 2WD Wheelbase: | 95.7 inches
243 cm
|
| 4WD Wheelbase: | 104 inches
264 cm
|
| Weight: | 9660 to 10605 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 18.4x34
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
