Navigation: Home > CaseIH > Farmall 120A

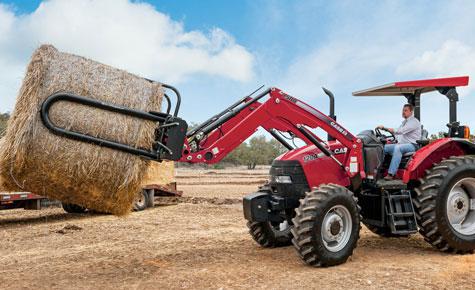

CaseIH Farmall 120A Tractors
 |
|
Power: 118 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| CaseIH Farmall 120A Power |
| Engine (gross): | 118 hp
88.0 kW
|
| PTO (claimed): | 96 hp
71.6 kW
|
| Drawbar (tested): | 86.68 hp
64.6 kW
|
| PTO (tested): | 104.48 hp
77.9 kW
|
| CaseIH Farmall 120A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 8-speed power shuttle
|
| | 8-speed synchronized shuttle
|
| | 16-speed power shuttle
|
| Capacity |
| Fuel: | 40 gal
151.4 L
|
| Hydraulic system: | 16.4 gal
62.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 16.4 gal
62.1 L
|
| Valves: | 2 to 4
|
| Pump flow: | 22 gpm
83.3 lpm
|
| Total flow: | 31 gpm
117.3 lpm
|
| Steering flow: | 9 gpm
34.1 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at 24"/610mm): | 7200 lbs
3265 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 101 inches
256 cm
|
| 4WD Wheelbase: | 99 inches
251 cm
|
| Weight: | 8091 to 9524 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 950
|
| Battery volts: | 12
|
|
