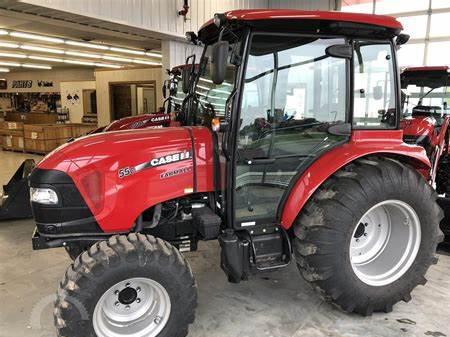

CaseIH Farmall 55C Tractors
 |
|
Power: 54 hp
Date of manufacture : 2015 - 2018 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Compact Utility tractor
|
| Original price: | $38,877 (2016 ROPS )
|
| Original price: | $47,769 (2016 Cab )
|
| CaseIH Farmall 55C Power |
| Engine: | 54 hp
40.3 kW
|
| PTO (claimed): | 43 hp
32.1 kW
|
| CaseIH Farmall 55C Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS. Cab optional.
|
| Transmission: | Continuously Variable Transmission (CVT)
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 or 2*Optional
|
| Mid valves: | 2
|
| Pump flow: | 9.8 gpm
37.1 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 3541 lbs
1606 kg
|
| Rear lift (at 24"/610mm): | 2800 lbs
1270 kg
|
| Rear Arms: | telescopic link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 73.5 inches
186 cm
|
| Weight: | 4190 to 4940 pounds
|
| Front tire: | 8x16
|
| Rear tire: | 14.9-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| ROPS Charging amps: | 75
|
| Cab Charging amps: | 90
|
| Battery volts: | 12
|
|
