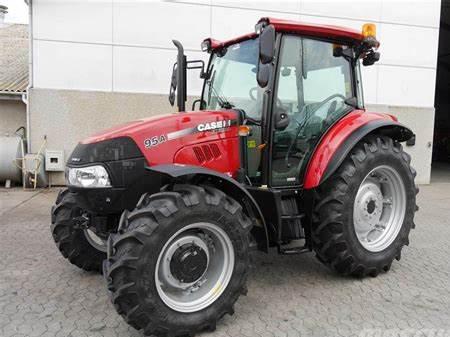

CaseIH Farmall 95A Tractors
 |
|
Power: 97 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| CaseIH Farmall 95A Power |
| Engine: | 97 hp
72.3 kW
|
| PTO (claimed): | 78 hp
58.2 kW
|
| CaseIH Farmall 95A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 12-speed power shuttle
|
| | 20-speed creeper
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 2 or 3
|
| Pump flow: | 16.9 gpm
64.0 lpm
|
| | 21.6 gpm
81.8 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | top-link draft sensing
|
| Rear lift (at ends): | 4409 lbs
1999 kg
|
| Rear lift (at 24"/610mm): | 3200 lbs
1451 kg
|
| | 7716 lbs
3499 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 91 inches
231 cm
|
| 4WD ROPS Wheelbase: | 84 inches
213 cm
|
| 4WD Cab Wheelbase: | 89 inches
226 cm
|
| Weight: | 7304 to 8492 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 18.4-30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
