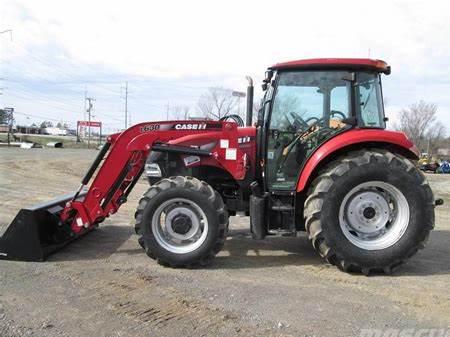

CaseIH Farmall 95C Tractors
 |
|
Power: 95 hp
Date of manufacture : 2008 - 2015 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|
| Original price: | $43,874 (2011)
|
| CaseIH Farmall 95C Power |
| Engine (gross): | 95 hp
70.8 kW
|
| PTO (claimed): | 80 hp
59.7 kW
|
| Drawbar (tested): | 72.8 hp
54.3 kW
|
| PTO (tested): | 89.8 hp
67.0 kW
|
| CaseIH Farmall 95C Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Straddle deck platform with ROPS. Cab optional.
|
| Transmissions: | 16-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 to 2
|
| Mid valves: | 0 to 2
|
| Pump flow: | 16.1 gpm
60.9 lpm
|
| Total flow: | 25.5 gpm
96.5 lpm
|
| Steering flow: | 9.4 gpm
35.6 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift (at 24"/610mm): | 3,960 lbs
1796 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 540/1000 (optional)
|
| Engine RPM: | 540@2206
1000@2260
|
| Dimensions & Tires |
| Wheelbase: | 86 inches
218 cm
|
| Weight: | 6614 to 8115 pounds
|
| Front tire: | 11.2R24
|
| Rear tire: | 16.9R30
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 730
|
| Battery volts: | 12
|
|
