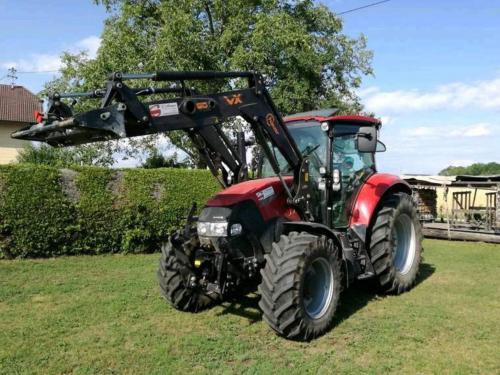

CaseIH Farmall 95U Tractors
 |
|
Power: 95 hp
Date of manufacture : 2008 - 2014 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|
| CaseIH Farmall 95U Power |
| Engine (gross): | 95 hp
70.8 kW
|
| PTO (claimed): | 80 hp
59.7 kW
|
| Drawbar (tested): | 72.0 hp
53.7 kW
|
| PTO (tested): | 87.2 hp
65.0 kW
|
| CaseIH Farmall 95U Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Straddle deck platform with ROPS
|
| | cab optional
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 20-speed mechanical shuttle with creeper
|
| | 12-speed power shuttle
|
| | 24-speed power shuttle with partial power shift
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 rear, 1 mid (optional)
|
| Pump flow: | 16.1 gpm
60.9 lpm
|
| Total flow: | 26.5 gpm
100.3 lpm
|
| Steering flow: | 10.4 gpm
39.4 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Control: | mechanical lower-link draft control, optional electronic draft control (EDC)
|
| Rear lift (at 24"/610mm): | 5,745 lbs
2605 kg
|
| | 6,445 lbs
2923 kg (EDC)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 92.2 inches
234 cm (2WD)
|
| | 92.5 inches
234 cm (4WD)
|
| Weight: | 7.275 to 7936 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
