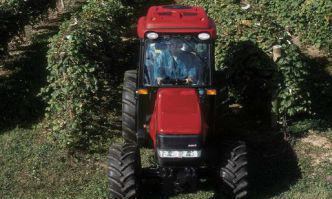

CaseIH Farmall 95N Tractors
 |
|
Power: 95 hp
Date of manufacture : 2009 - 2016 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Orchard/Vineyard tractor
|
| Original price: | $50,336 (2014 ROPS )
|
| CaseIH Farmall 95N Power |
| Engine (gross): | 95 hp
70.8 kW
|
| PTO (claimed): | 82 hp
61.1 kW
|
| CaseIH Farmall 95N Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post foldable mid ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 16-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| | 32-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 2 or 3
|
| Pump flow: | 12.7 gpm
48.1 lpm
|
| | 16.9 gpm
64.0 lpm (optional)
|
| Total flow: | 26.4 gpm
99.9 lpm
|
| Steering flow: | 9.2 gpm
34.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | lower link draft sensing
|
| Rear lift (at 24"/610mm): | 4400 lbs
1995 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic dry disc
|
| Rear RPM: | 540
|
| | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 85.6 inches
217 cm
|
| Weight: | 5820 to 6107 pounds
|
| Front tire: | 7.50R18
|
| Rear tire: | 14.9R28
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 800
|
| Battery volts: | 12
|
|
