| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Transmission: | 19-speed full powershift
|
| Photos |

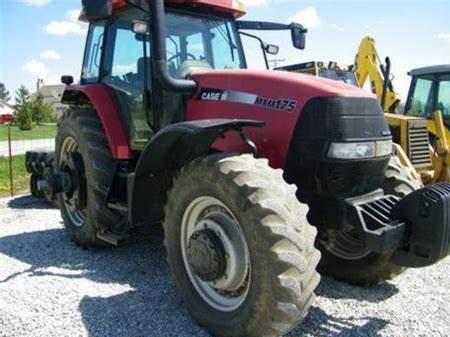

| | CaseIH MXM175 photos... |
| Capacity |
| Fuel: | 105 gal
397.4 L
|
| Hydraulic system: | 23.75 gal
89.9 L
|
| Hydraulics |
| Type: | closed-center load sensing
|
| Capacity: | 23.75 gal
89.9 L
|
| Pressure: | 2750 psi
189.6 bar
|
| Valves: | 4 to 5
|
| Pump flow: | 26 gpm
98.4 lpm
|
| Total flow: | 31.7 gpm
120.0 lpm (implement pump)
|
| | 48.7 gpm
184.3 lpm (total)
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | electronic lower-link sensing
|
| Rear lift (at 24"/610mm): | 17,085 lbs
7749 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 111.8 inches
283 cm (2WD)
|
| | 112.5 inches
285 cm (4WD)
|
| Weight: | 15,795 lbs
7164 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 1300
|
| Battery volts: | 12
|
| Battery AH: | 176
|
|
