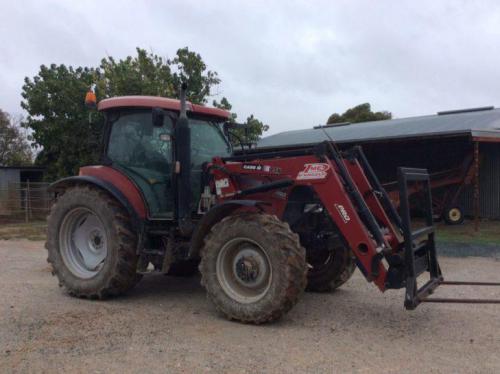

CaseIH MXU115 Value Tractors
 |
|
Power: 116 hp
Date of manufacture : 2005 - 2006 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Basildon, England
|
| Variants |
| MXU115 Limited: | premium model
|
| MXU115 Value: | economy model
|
| CaseIH MXU115 Value Power |
| Engine (gross): | 116 hp
86.5 kW
|
| PTO (claimed): | 95 hp
70.8 kW
|
| CaseIH MXU115 Value Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Final drives: | planetary inboard
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | ROPS. Cab optional.
|
| Transmissions: | 12-speed synchromesh
|
| | 16-speed partial powershift
|
| | 24-speed partial powershift
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 to 3
|
| Pump flow: | 16.6 gpm
62.8 lpm
|
| Total flow: | 27.1 gpm
102.6 lpm
|
| Steering flow: | 10.5 gpm
39.7 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Control: | mechanical lower link
|
| Rear lift (at 24"/610mm): | 4,878 lbs
2212 kg
|
| | 8,813 lbs
3997 kg (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 104.4 inches
265 cm
|
| 4WD Wheelbase: | 104.7 inches
265 cm
|
| Front tire: | 10.00x16
|
| Rear tire: | 18.4R38 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 800
|
| | 960 (optional)
|
| Battery volts: | 12
|
|
