| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Basildon, England
|
| Original price: | $64,400 (2004 )
|

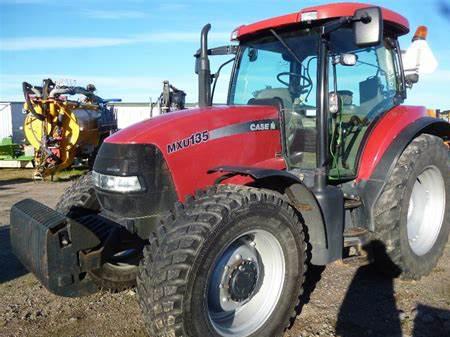

| CaseIH MXU135 Power |
| Engine (gross): | 135 hp
100.7 kW
|
| PTO (claimed): | 115 hp
85.8 kW
|
| Drawbar (tested): | 94.4 hp
70.4 kW
|
| PTO (tested): | 127.4 hp
95.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary inboard
|
| Differential lock: | electro-hydraulic rear standard
|
| | front optional
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard.
|
| Transmissions: | 24-speed partial power shift
|
| | 16-speed partial powershift
|
| Hydraulics |
| Type: | pressure-flow compensated (PFC)
|
| Pressure: | 3118 psi
215.0 bar
|
| Rear valves: | 2 to 4
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 37 gpm
140.0 lpm
|
| Steering flow: | 10.5 gpm
39.7 lpm
|
| Tractor hitch |
| Rear Type: | II/IIIN
|
| Control: | electronic draft control
|
| Rear lift: | 12,185 lbs
5527 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet plates
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1969
1000@2120
|
| Dimensions & Tires |
| 2WD Wheelbase: | 104.4 inches
265 cm
|
| 4WD Wheelbase: | 104.7 inches
265 cm
|
| Weight: | 10979 to 12020 pounds
|
| Front tire: | 10.00x16
|
| 2WD Rear tire: | 18.4R38
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 1300
|
| Battery volts: | 12
|
|
