Power: 180 hp Date of manufacture : 0000 - 0000

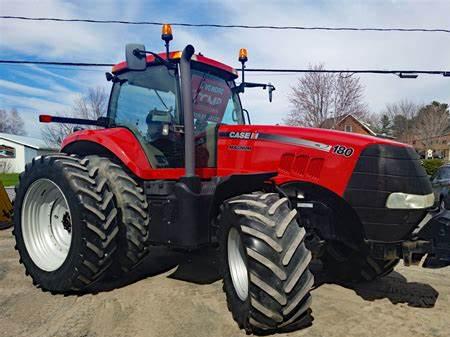

Production Manufacturer: CaseIH Type: Row-Crop tractor Factory: Racine, Wisconsin, USA CaseIH Magnum 180 Power Engine: 180 hp 134.2 kW PTO (claimed): 150 hp 111.9 kW Drawbar (tested): 132.7 hp 99.0 kW PTO (tested): 179.8 hp 134.1 kW CaseIH Magnum 180 Engine Mechanical Chassis: 4x4 MFWD 4WD Steering: hydrostatic power Brakes: differential hydraulic wet disc Cab: Surveyor cab standard with air-conditioning. Transmissions: 18-speed full power shift   19-speed full power shift   continuously variable transmission (CVT) Capacity Fuel: 118 gal 446.6 L Hydraulic system: 26.5 gal 100.3 L Hydraulics Type: Pressue Flow Compensated (PFC) Capacity: 26.5 gal 100.3 L Valves: 3 to 5 Total flow: 39.6 gpm 149.9 lpm Tractor hitch Rear Type: II/III Rear lift: 12,787 lbs 5800 kg   15,873 lbs 7199 kg (optional) Power Take-off (PTO) Rear PTO: independent Rear RPM: 540/1000 (1.375)   1000 (1.75) Dimensions & Tires Wheelbase: 118.3 inches 300 cm Weight: 19,000 lbs 8618 kg Electrical Ground: negative Charging system: alternator Charging amps: 150   200 (optional)
