CaseIH Magnum 190 Tractors

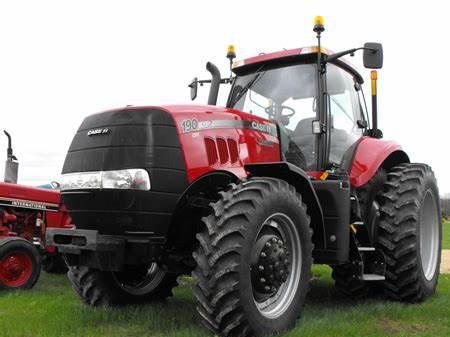

CaseIH Magnum 190
Power: 190 hp
Date of manufacture :
2009 - 2013
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
CaseIH Magnum 190 Power
Engine:190 hp
141.7 kW
PTO (claimed):165 hp
123.0 kW
PTO (tested):189.4 hp
141.2 kW
CaseIH Magnum 190 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Surveyor cab standard with air-conditioning.
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
Photos
CaseIH Magnum 190 photos...
Hydraulics
Type:Pressue Flow Compensated (PFC)
Valves:3 to 5
Total flow:39.6 gpm
149.9 lpm
Tractor hitch
Rear Type:II/III
Rear lift:12,787 lbs
5800 kg
 15,873 lbs
7199 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
 1000 (1.75)
Dimensions & Tires
Wheelbase:118.3 inches
300 cm
Weight:19,000 lbs
8618 kg
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
 200 (optional)
