CaseIH Magnum 200 Tractors

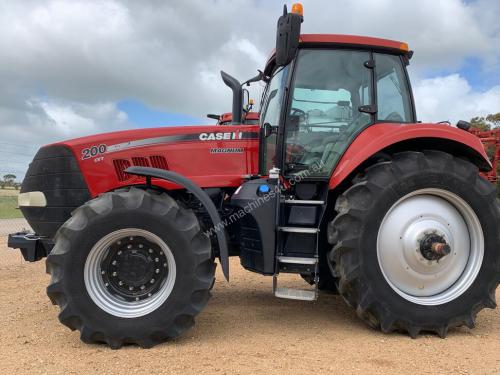

CaseIH Magnum 200
Power: 200 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:CaseIH (a part of CNH)
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$197,469 (2014 Power shift )
Original price:$207,228 (2014 CVT )
Original price:$210,553 (2017 Power shift )
Original price:$220,958 (2017 CVT )
CaseIH Magnum 200 Power
Engine (gross):200 hp
149.1 kW
Engine (max):245 hp
182.7 kW
PTO (claimed):170 hp
126.8 kW
Drawbar (tested):155.25 hp
115.8 kW
PTO (tested):192.65 hp
143.7 kW
CaseIH Magnum 200 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Steering:power
Brakes:hydraulic wet disc
Cab:Magnum cab standard with air-conditioning. Optional cab suspension.
Transmissions:19-speed full power shift
 continuously variable transmission (CVT)
Hydraulics
Type:pressure flow compensating
Rear valves:3 to 5
Pump flow:41 gpm
155.2 lpm
 43 gpm
162.8 lpm (CVT)
Tractor hitch
Rear Type:III/IIIN
Control:electronic lower link draft sensing
Rear lift (at 24"/610mm):14100 lbs
6395 kg
Drawbar:Cat. 3
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:118 inches
299 cm
Weight:20705 lbs
9391 kg
Front tire:380/85R34
Rear tire:480/80R46
Full dimensions and tires ...
Magnum 200 Serial Numbers
Location:Serial number plate on the front right of the tractor frame, above the front axle.
photo of Magnum 200 serial number

Electrical
Ground:negative
Charging system:alternator
Battery volts:12
