CaseIH Puma 215 Tractors

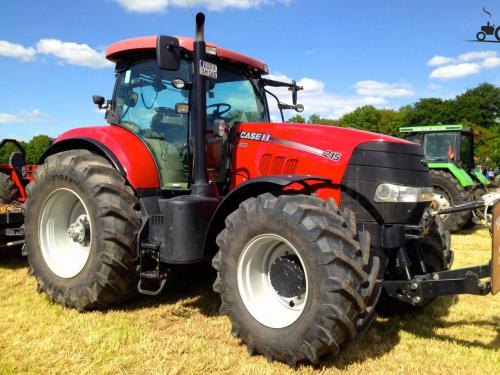

CaseIH Puma 215
Power: 215 hp
Date of manufacture :
2011 - 2013
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Basildon, England
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Cab standard. Optional cab suspension.
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
Capacity
Fuel:104 gal
393.6 L
Exhaust fluid (DEF):13.2 gal
50.0 L
Hydraulic system:22 gal
83.3 L
Hydraulics
Type:closed center pressure flow compensating (PFC)
Capacity:22 gal
83.3 L
Rear valves:3 to 4 (mechanical)
 3 to 5 (electronic)
Pump flow:32 gpm
121.1 lpm (powershift)
 35 gpm
132.5 lpm (CVT/opt-PS)
 40 gpm
151.4 lpm (CVT opt)
Total flow:49 gpm
185.5 lpm (powershift)
 52 gpm
196.8 lpm (CVT/opt-PS)
 57 gpm
215.7 lpm (CVT opt)
Steering flow:17 gpm
64.3 lpm
Tractor hitch
Rear Type:2/3N
Rear lift:10,200 lbs
4626 kg
 13,400 lbs
6078 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
 1000 (1.75)
 1000/1000E
Dimensions & Tires
Wheelbase:113.6 inches
288 cm
Weight:17880 lbs
8110 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
 200*Optional
Battery CCA:1300
Battery volts:12
