| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Original price: | $161,431 (2010 )
|
| CaseIH Puma 225 Power |
| Engine: | 225 hp
167.8 kW
|
| PTO (claimed): | 195 hp
145.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Trailer brakes: | hydraulic optional
|
| Cab: | Cab standard.
|
| Transmission: | continuously variable transmission (CVT)
|
| Photos |

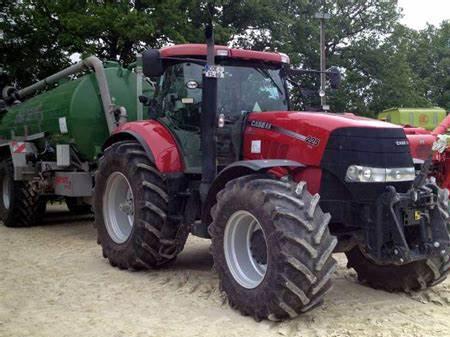

| | CaseIH Puma 225 photos... |
| Capacity |
| Fuel: | 107 gal
405.0 L
|
| Hydraulic system: | 26.5 gal
100.3 L
|
| Hydraulics |
| Type: | pressure flow compensating (PFC)
|
| Capacity: | 26.5 gal
100.3 L
|
| Valves: | 3 to 5
|
| Pump flow: | 39.6 gpm
149.9 lpm
|
| | 45 gpm
170.3 lpm *Optional
|
| Total flow: | 56.6 gpm
214.2 lpm
|
| | 62 gpm
234.7 lpm *Optional
|
| Steering flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Rear lift (at ends): | 12,787 lbs
5800 kg
|
| | 15,873 lbs
7199 kg *Optional
|
| Rear lift (at 24"/610mm): | 10,900 lbs
4944 kg
|
| | 13,600 lbs
6168 kg *Optional
|
| Front Hitch: | optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000/1000E
|
| Front PTO: | optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 113.6 inches
288 cm
|
| Weight: | 16,500 lbs
7484 kg
|
| Front tire: | 16.9R30
|
| Rear tire: | 20.8R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| Battery CCA: | 1300
|
| Battery volts: | 12
|
|
