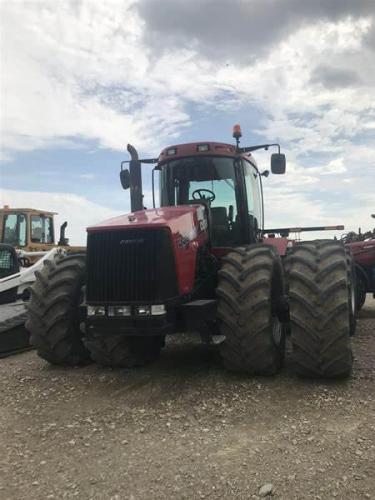

CaseIH Steiger 330 Tractors
 |
|
Power: 330 hp
Date of manufacture : 2007 - 2008 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| CaseIH Steiger 330 Power |
| Engine: | 330 hp
246.1 kW
|
| PTO (claimed): | 269 hp
200.6 kW
|
| Drawbar (tested): | 258.63 hp
192.9 kW
|
| PTO (tested): | 323.31 hp
241.1 kW
|
| CaseIH Steiger 330 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Steering: | articulated power
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | PFC
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm *Optional high capacity pump.
|
| | 90 gpm
340.7 lpm *Optional TwinFlow
|
| Tractor hitch |
| Rear Type: | IVN
|
| Rear lift (at 24"/610mm): | 15669 lbs
7107 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent*Optional
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 139 inches
353 cm
|
| Weight: | 32295 lbs
14649 kg
|
| Front tire: | 480/80R46
|
| Rear tire: | 480/80R46
|
| Full dimensions and tires ... | |
