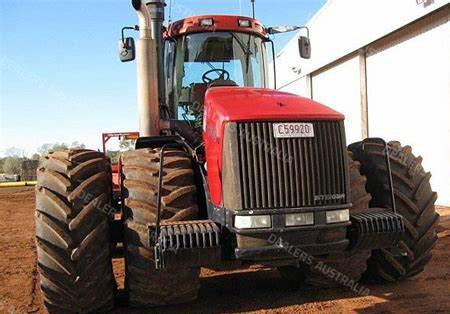

CaseIH STX500 Tractors

CaseIH STX500
Power: 500 hp
Date of manufacture :
2004 - 2006
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
CaseIH STX500 Power
Engine:500 hp
372.9 kW
PTO (claimed):440 hp
328.1 kW
CaseIH STX500 Engine
Mechanical
Chassis:4x4 articulated 4WD
Cab:Surveyor Cab standard.
Transmission:16-speed
Hydraulics
Type:pressure flow compensated (PFC)
Pump flow:42 gpm
159.0 lpm
 57 gpm
215.7 lpm (optional)
Tractor hitch
Rear Type:IVN/III
Rear lift (at 24"/610mm):19500 lbs
8845 kg
Power Take-off (PTO)
Rear PTO:independent (optional)
Rear RPM:1000
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:54000 lbs
24494 kg
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
