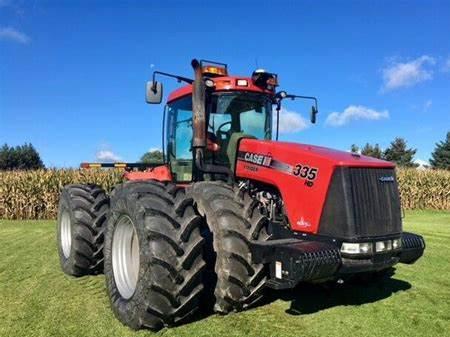

CaseIH Steiger 335 Tractors
 |
|
Power: 335 hp
Date of manufacture : 2008 - 2010 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $212,829 (2010)
|
| CaseIH Steiger 335 Power |
| Engine: | 335 hp
249.8 kW
|
| PTO (claimed): | 273 hp
203.6 kW
|
| Drawbar (tested): | 258.63 hp
192.9 kW
|
| PTO (tested): | 323.31 hp
241.1 kW
|
| CaseIH Steiger 335 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | integrated electro-hydraulic wet disc
|
| Cab: | Cab standard with heat and A/C, optional Luxury cab
|
| Transmissions: | 16-speed full power shift
|
| | 24-speed
|
| Hydraulics |
| Type: | parallel pressure flow compensated (PFC)
|
| Valves: | 4 to 5
|
| | 4 to 9 (without 3-point hitch)
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm (High-Flow)
|
| | 90 gpm
340.7 lpm (Twin-Flow)
|
| Tractor hitch |
| Rear Type: | 4N/3
|
| Rear lift (at 24"/610mm): | 15,669 lbs
7107 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent optional
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 139 inches
353 cm
|
| Weight: | 29760 to 32120 pounds
|
| Front tire: | 20.8R42
|
| Rear tire: | 20.8R42
|
| Full dimensions and tires ... |
| Steiger 335 Serial Numbers |
| Location: | Serial number on the left side of the tractor, behind the step.
|
photo of Steiger 335 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
