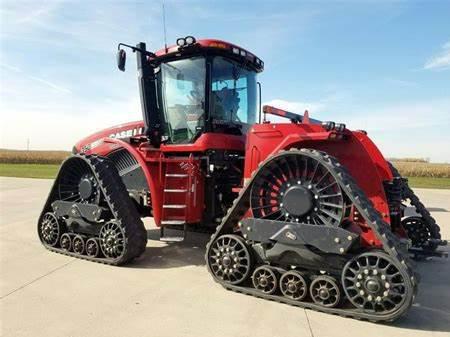

CaseIH Steiger 350 Rowtrac Tractors
 |
|
Power: 350 hp
Date of manufacture : 2013 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $344,973 (2013 )
|
| CaseIH Steiger 350 Rowtrac Power |
| Engine: | 350 hp
261.0 kW
|
| PTO (claimed): | 290 hp
216.3 kW
|
| Drawbar (tested): | 261.07 hp
194.7 kW
|
| PTO (tested): | 346.42 hp
258.3 kW
|
| CaseIH Steiger 350 Rowtrac Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Final drives: | inboard planetary
|
| Brakes: | wet disc
|
| Cab: | Surveyor Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | CaseIH Steiger 350 Rowtrac photos... |
| Hydraulics |
| Type: | pressure flow compensated
|
| Rear valves: | 4 to 8
|
| | 5*With 3-point hitch.
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm *Optional
|
| | 108 gpm
408.8 lpm *Optional
|
| SCV flow: | 35 gpm
132.5 lpm
|
| Tractor hitch |
| Rear Type: | IVN
|
| | IIIN*Optional
|
| Control: | lower link draft sensing
|
| Rear lift (at 24"/610mm): | 20000 lbs
9072 kg
|
| Rear Arms: | fixed
|
| Drawbar: | Category 4, Swinging
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.375)
|
| Dimensions & Tracks |
| Wheelbase: | 160 inches
406 cm
|
| Weight: | 50800 to 51905 pounds
|
| 16-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery volts: | 12
|
|
