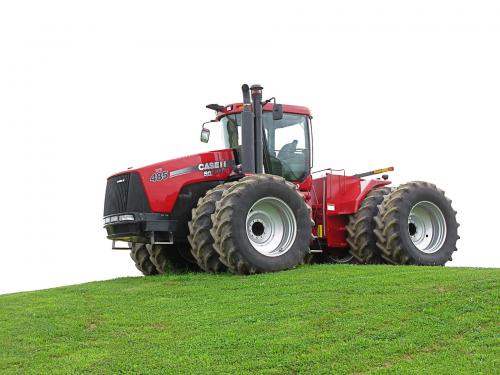

CaseIH Steiger 485QT Tractors
 |
|
Power: 485 hp
Date of manufacture : 2008 - 2010 |
| Production |
| Manufacturer: | CaseIH
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $359,521 (2010)
|
| Variants |
| 485: | wheeled tractor
|
| CaseIH Steiger 485QT Power |
| Engine: | 485 hp
361.7 kW
|
| PTO (claimed): | 429 hp
319.9 kW
|
| CaseIH Steiger 485QT Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Steering: | hydrostatic power
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard with heat and A/C, optional Luxury cab
|
| Transmission: | 16-speed
|
| Hydraulics |
| Valves: | 4 to 5
|
| | 4 to 9 (without 3-point hitch)
|
| Total flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm (High-Flow)
|
| | 90 gpm
340.7 lpm (Twin-Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift (at 24"/610mm): | 19,728 lbs
8948 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent optional
|
| Rear RPM: | 1000
|
| Dimensions & Tracks |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 49,000 lbs
22226 kg
|
| 30 or 36-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
