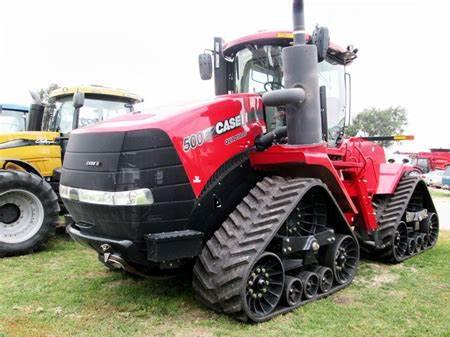

CaseIH Steiger 500 Quadtrac Tractors
 |
|
Power: 500 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Articulated Crawler tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Variants |
| 500: | wheeled tractor
|
| 500QT: | crawler tractor
|
| CaseIH Steiger 500 Quadtrac Power |
| Engine: | 500 hp
372.9 kW
|
| PTO (claimed): | 430 hp
320.7 kW
|
| Drawbar (tested): | 384.77 hp
286.9 kW
|
| PTO (tested): | 504.60 hp
376.3 kW
|
| CaseIH Steiger 500 Quadtrac Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Cab: | Surveyor cab standard.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Rear valves: | 4 to 8
|
| Pump flow: | 35 gpm
132.5 lpm
|
| Total flow: | 42 gpm
159.0 lpm
|
| | 56 gpm
212.0 lpm (High Flow)
|
| | 113 gpm
427.7 lpm (Twin Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift: | 19,728 lbs
8948 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| Dimensions & Tracks |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 53554 to 54290 pounds
|
| tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
