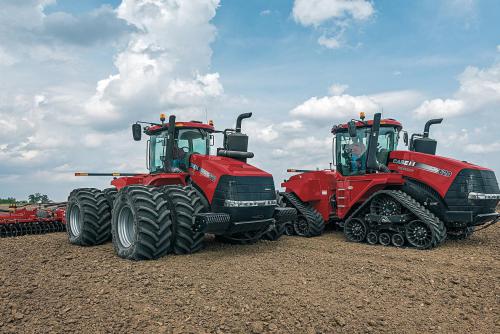

CaseIH Steiger 530QT Tractors
 |
|
Power: 535 hp
Date of manufacture : 2007 - 2008 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Farm/Agricultural tractor
|
| CaseIH Steiger 530QT Power |
| Engine: | 535 hp
398.9 kW
|
| PTO (claimed): | 473 hp
352.7 kW
|
| Drawbar (tested): | 406.28 hp
303.0 kW
|
| PTO (tested): | 534.72 hp
398.7 kW
|
| CaseIH Steiger 530QT Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Steering: | hydrostatic power
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard with heat and A/C, optional Luxury cab
|
| Transmission: | 16-speed full powershift
|
| Hydraulics |
| Valves: | 4 to 5
|
| | 4 to 9 (without 3-point hitch)
|
| Pump flow: | 42 gpm
159.0 lpm
|
| | 57 gpm
215.7 lpm (High-Flow)
|
| | 94 gpm
355.8 lpm (Twin-Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift (at 24"/610mm): | 19,728 lbs
8948 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent optional
|
| Rear RPM: | 1000
|
| Dimensions & Tracks |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 51000 to 52410 pounds
|
| 30 or 36-inch tracks |
| Full dimensions and tracks ... | |
