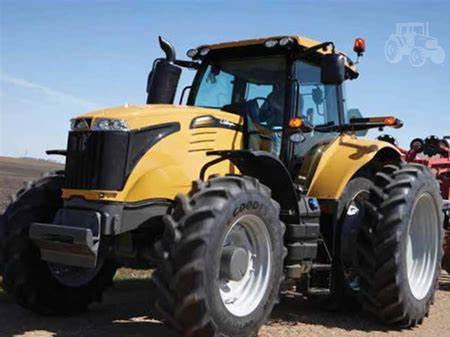

Challenger MT525E Tractors

Challenger MT525E
Power: 140 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Jackson, Minnesota, USA
Challenger MT525E Power
Engine (gross):140 hp
104.4 kW
Engine (max):175 hp
130.5 kW
PTO (claimed):120 hp
89.5 kW
Challenger MT525E Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning. Auto-Guide 3000
Transmissions:16-speed four-speed power shift
 24-speed six-speed power shift
 continuously-variable transmission (CVT)
Capacity
Fuel:80 gal
302.8 L
Exhaust fluid (DEF):8 gal
30.3 L
Hydraulic system:15.9 gal
60.2 L (AP6)
 26.4 gal
99.9 L (CVT)
Hydraulics
Type:closed-center load sensing
Capacity:15.9 gal
60.2 L (AP6)
 26.4 gal
99.9 L (CVT)
Pressure:2900 psi
200.0 bar
Valves:3 or 4
SCV flow:26.4 gpm
99.9 lpm
Total flow:29 gpm
109.8 lpm
 50 gpm
189.3 lpm *Optional with CVT
Tractor hitch
Rear Type:II
Rear lift (at ends):8900 lbs
4037 kg
 15500 lbs
7030 kg *Lift capacity with CVT transmission.
Front Hitch:II
Front lift (at ends):6200 lbs
2812 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
 540/540E/1000/1000E*Optional
Dimensions & Tires
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
