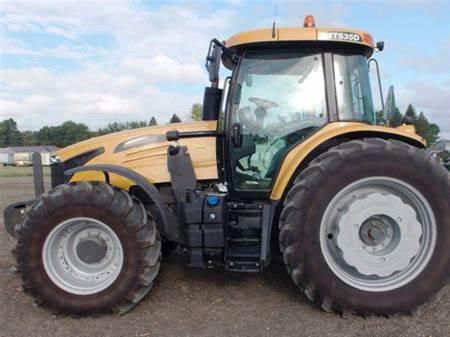

Challenger MT535D Tractors
 |
|
Power: 150 hp
Date of manufacture : 2013 - 2014 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Original price: | $134,789 (2013 classic )
|
| Original price: | $157,151 (2013 deluxe )
|
| Original price: | $165,629 (2013 deluxe )
|
| Challenger MT535D Power |
| Engine: | 150 hp
111.9 kW
|
| PTO (claimed): | 120 hp
89.5 kW
|
| Drawbar (tested): | 107.3 hp
80.0 kW
|
| PTO (tested): | 144.4 hp
107.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. AGCO System 150 (optional)
|
| | AGCOMMAND (optional)
|
| Transmission: | 24-speed six-speed power shift
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 2 to 4
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | electronic lower link draft control
|
| Drawbar: | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000
|
| | 540E/1000E/1000/1000E
|
| Dimensions & Tires |
| Front tire: | 380/85R28
|
| Rear tire: | 460/85R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| | 240*Total capacity with dual 120A alternator option.
|
| Batteries: | 2
|
| Battery CCA: | 600
|
| Battery volts: | 12
|
|
