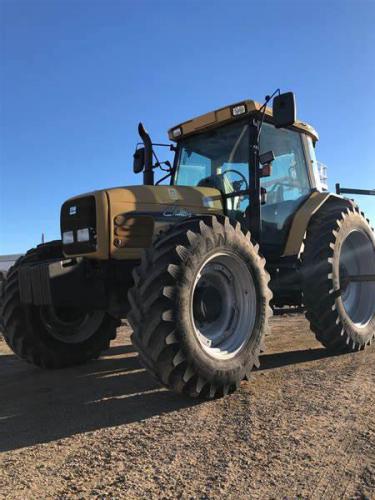

Challenger MT545 Tractors
 |
|
Power: 133 hp[P]
Date of manufacture : 2002 - 2003 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Variants |
| Massey Ferguson 6290 |
| Challenger MT545 Power |
| PTO (claimed): | 120 hp
89.5 kW
|
| Drawbar (tested): | 113.6 hp
84.7 kW
|
| PTO (tested): | 120.5 hp
89.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab optional with air-conditioning.
|
| Transmission: | 32-speed partial power shift
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 2 to 4
|
| Total flow: | 28 gpm
106.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at 24"/610mm): | 9000 lbs
4082 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 108.3 inches
275 cm
|
| Weight: | 10082 to 11437 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 208R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
|
