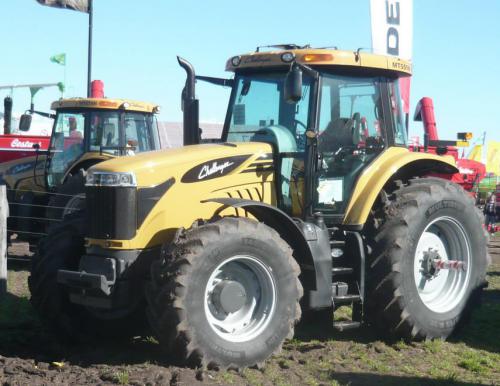

Challenger MT555B Tractors
 |
|
Power: 153 hp
Date of manufacture : 2004 - 2011 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with heat and A/C. Optional pneumatic cab suspension and automatic climate control.
|
| Transmissions: | continuously variable transmission
|
| | 32-speed partial power shift
|
| Capacity |
| Fuel: | 100 gal
378.5 L
|
| Hydraulic system: | 18.5 gal
70.0 L (AutoPower)
|
| | 26.4 gal
99.9 L (CVT)
|
| Hydraulics |
| Type: | closed center PFC
|
| Capacity: | 18.5 gal
70.0 L (AutoPower)
|
| | 26.4 gal
99.9 L (CVT)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | II/III
|
| Rear lift (at 24"/610mm): | 14,700 lbs
6667 kg
|
| | 13,700 lbs
6214 kg (CVT)
|
| Front Hitch: | optional
|
| Front lift (at ends): | 5,500 lbs
2494 kg
|
| | 7700 lbs
3492 kg (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000*Optional
|
| Engine RPM: | 540@1890
540E@1523
1000@2000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 121.4 inches
308 cm
|
| 4WD Wheelbase: | 118.7 inches
301 cm
|
| Weight: | 14028 to 15060 pounds
|
| Front tire: | 420/90R30
|
| Rear tire: | 520/85R42
|
| Full dimensions and tires ... |
| MT555B Serial Numbers |
| 2004: | N00001
|
| 2005: | P00001
|
| 2006: | R00001
|
| 2007: | S00001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Batteries: | 2
|
| Battery CCA: | 420
|
| Battery volts: | 12
|
|
