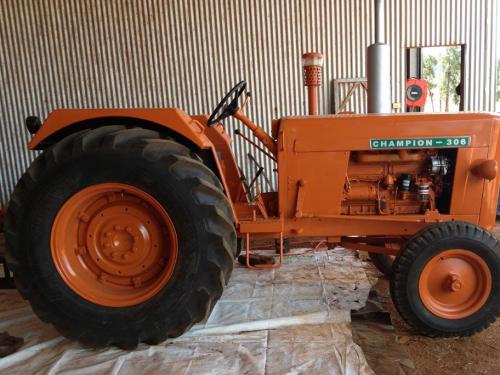

Chamberlain 306 Tractors

Chamberlain 306
Power: 70 hp
Date of manufacture :
1966 - 1969
Production
Manufacturer:Chamberlain
Type:Standard-tread tractor
Factory:Welshpool, Australia
Chamberlain 306 Power
Engine:70 hp
52.2 kW
PTO (claimed):58 hp
43.3 kW
Chamberlain 306 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station. Cab optional.
Transmission:9-speed gear
Photos
Chamberlain 306 photos...
Tractor hitch
Rear Type:II (optional)
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@1600
Dimensions & Tires
Weight:7800 lbs
3538 kg
Front tire:7.50x18
Rear tire:18.4x30
Full dimensions and tires ...
Belt Pulley
Diameter:10.25 inches
26 cm
Width:6.25 inches
15 cm
RPM:1600
Speed:3100 ft/min
944.88 meters/min
