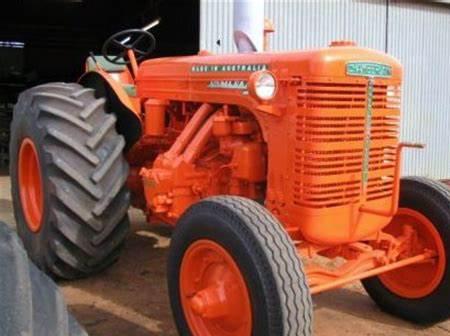

Chamberlain 55DA Tractors
 |
|
Power: 60 hp
Date of manufacture : 1954 - 1957 |
| Production |
| Manufacturer: | Chamberlain
|
| Type: | Standard-tread tractor
|
| Factory: | Welshpool, Australia
|
| Total built: | 341
|
| Variants |
| 55KA: | kerosene engine
|
| 55DA: | diesel engine
|
| Chamberlain 55DA Power |
| Drawbar (claimed): | 52 hp
38.8 kW
|
| Belt (claimed): | 54.6 hp
40.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | bull gears
|
| Steering: | manual
|
| Brakes: | mechanical
|
| Cab: | Open operator station.
|
| Transmission: | 9-speed gear
|
| Power Take-off (PTO) |
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 83 inches
210 cm
|
| Weight: | 9000 lbs
4082 kg
|
| Front tire: | 8.25x20
|
| Rear tire: | 18x26
|
| Full dimensions and tires ... |
| 55DA Serial Numbers |
| 6/1954: | 101
|
| 1/1955: | 110
|
| 12/1955: | 281
|
| 7/1956: | 431
|
| Final: | 441
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13 inches
33 cm
|
| Width: | 7 inches
17 cm
|
| RPM: | 810
|
| Speed: | 2740 ft/min
835.15 meters/min
|
|
