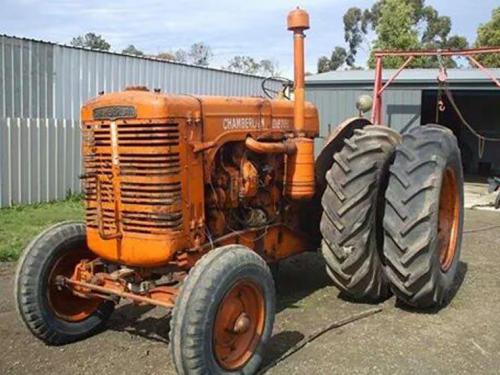

Chamberlain 60DA Tractors
 |
|
Power: 62 hp
Date of manufacture : 1952 - 1954 |
| Production |
| Manufacturer: | Chamberlain
|
| Type: | Standard-tread tractor
|
| Factory: | Welshpool, Australia
|
| Total built: | 190
|
| Variants |
| 60D: | wide gear ratio
|
| 60DA: | close gear ratio
|
| Chamberlain 60DA Power |
| Drawbar (claimed): | 45 hp
33.6 kW
|
| Belt (claimed): | 56 hp
41.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | spur gear
|
| Steering: | mechanical - recirculating ball
|
| Cab: | Open operator station.
|
| Transmission: | 9-speed sliding gear
|
| Photos |
| | Chamberlain 60DA photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 83 inches
210 cm
|
| Weight: | 9500 lbs
4309 kg
|
| Front tire: | 7.50x18
|
| Rear tire: | 15.00x30
|
| Full dimensions and tires ... |
| 60DA Serial Numbers |
| Location: | Serial number stamped into the front top-right of the tractor frame.
|
| 1952: | 1
|
| Feb 1953: | 27
|
| Dec 1953: | 176
|
| Final: | 190
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13 inches
33 cm
|
| Width: | 7 inches
17 cm
|
| RPM: | 810
|
| Speed: | 2740 ft/min
835.15 meters/min
|
|
