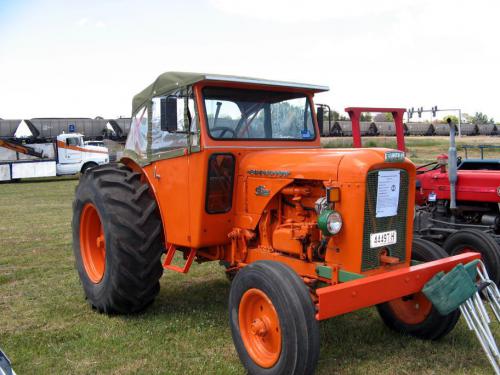

Chamberlain Champion 9G Tractors
 |
|
Power: 62 hp
Date of manufacture : 1958 - 1966 |
| Production |
| Manufacturer: | Chamberlain
|
| Type: | Standard-tread tractor
|
| Factory: | Welshpool, Australia
|
| Chamberlain Champion 9G Power |
| Engine: | 62 hp
46.2 kW
|
| Drawbar (claimed): | 45 hp
33.6 kW
|
| Belt (claimed): | 52 hp
38.8 kW
|
| Chamberlain Champion 9G Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | mechanical - recirculating ball
|
| Cab: | Open operator station. Cab optional.
|
| Transmission: | 9-speed gear
|
| Photos |
| | Chamberlain Champion 9G photos... |
| Tractor hitch |
| Rear Type: | II*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | 203.2mm dry disc
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@1600
|
| Dimensions & Tires |
| Wheelbase: | 94 inches
238 cm
|
| Weight: | 7125 lbs
3231 kg
|
| Front tire: | 7.50x18
|
| Rear tire: | 15x28
|
| Full dimensions and tires ... |
| Champion 9G Serial Numbers |
| 1958: | 1704
|
| 1959: | 1804
|
| 1960: | 2434
|
| 1961: | 3169
|
| 1962: | 3822
|
| 1963: | 4873
|
| 1964: | 5783
|
| 1965: | 6912
|
| 1966: | 8048
|
| Final: | 8165
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 10.25 inches
26 cm
|
| Width: | 7.25 inches
18 cm
|
| Speed: | 3100 ft/min
944.88 meters/min
|
| Electrical |
| Charging system: | generator
|
| Charging volts: | 12
|
| Batteries: | 2
|
| Battery volts: | 6
|
|
