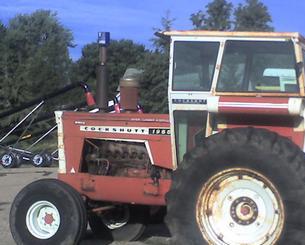

Cockshutt 1955 Tractors

Cockshutt 1955
Power: 120 hp
Date of manufacture :
1970 - 1975
Production
Manufacturer:Cockshutt
Type:Row-Crop tractor
Original price:$14,250 (1974 )
Cockshutt 1955 Power
PTO (claimed):108 hp
80.5 kW
Drawbar (tested):90.32 hp
67.4 kW
PTO (tested):108.16 hp
80.7 kW
Cockshutt 1955 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential hydraulic dry disc
Cab:Open operator station. Optional two-post ROPS and cab.
Transmissions:6-speed gear
 18-speed partial power shift
Hydraulics
Type:closed center
Pump flow:20 gpm
75.7 lpm
Tractor hitch
Rear Type:II/III
Rear lift:6000 lbs
2721 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
2WD Wheelbase:103 inches
261 cm
4WD Wheelbase:86.25 inches
219 cm
Weight:11,250 lbs
5103 kg
Front tire:11L-15
Rear tire:20.8-38
Full dimensions and tires ...
1955 Serial Numbers
1970:222-304
1971:226-858
1972:232-958
1973:239-032
1974:247-871
Final:253-050

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
