| Production |
| Manufacturer: | Cockshutt (a part of White)
|
| Type: | Row-Crop tractor
|
| Factory: | Charles City, Iowa, USA
|
| Original price: | $12,700 (1974 )
|
| Cockshutt 1950 Power |
| PTO (claimed): | 105 hp
78.3 kW
|
| Drawbar (tested): | 98.00 hp
73.1 kW
|
| PTO (tested): | 105.79 hp
78.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydraulic power
|
| Brakes: | differential disc
|
| Cab: | Open operator station. Optional cab.
|
| Transmissions: | 6-speed gear
|
| | 12-speed partial power shift
|
| Photos |

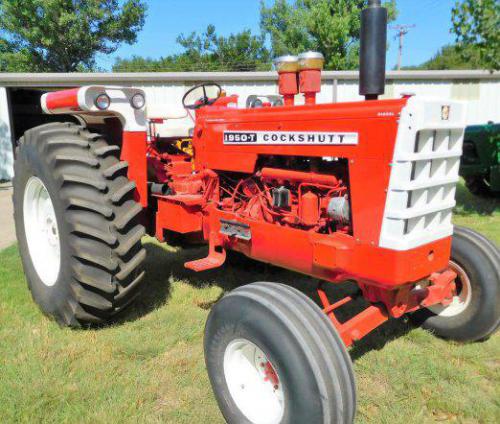

| | Cockshutt 1950 photos... |
| Capacity |
| Fuel: | 27.5 gal
104.1 L
|
| Hydraulic system: | 3.5 gal
13.2 L
|
| Hydraulics |
| Capacity: | 3.5 gal
13.2 L
|
| Pump flow: | 11.7 gpm
44.3 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2400
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm (2WD)
|
| | 85.25 inches
216 cm (4WD)
|
| Weight: | 11955 to 12975 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 23.1-34
|
| 1950 Serial Numbers |
| 1964: | 150492
|
| 1965: | 153016
|
| 1966: | 168190
|
| 1967: | 189008
|
| Final: | 199186
|
how to read serial numbers...
| |
