| Production |
| Distributor: | Cub Cadet
|
| Manufacturer: | Mitsubishi
|
| Type: | Compact Utility tractor
|
| Original price: | $12,800 (2007 )
|
| Cub Cadet 7530 Power |
| Engine: | 30 hp
22.4 kW
|
| PTO (claimed): | 26 hp
19.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | foldable ROPS
|
| Transmission: | 8-speed sync shuttle
|

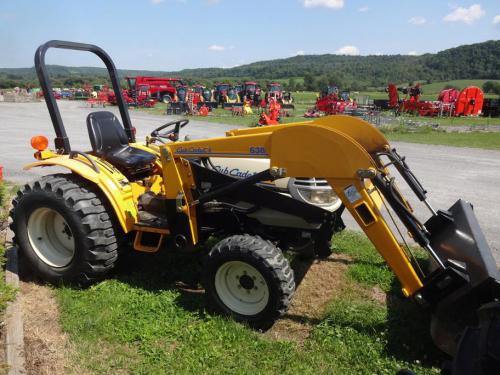

| Photos |
| | Cub Cadet 7530 photos... |
| Capacity |
| Fuel: | 7.1 gal
26.9 L
|
| Hydraulic system: | 7.9 gal
29.9 L
|
| Hydraulics |
| Type: | gear pump
|
| Capacity: | 7.9 gal
29.9 L
|
| Pump flow: | 7.2 gpm
27.3 lpm
|
| Total flow: | 10.4 gpm
39.4 lpm
|
| Steering flow: | 3.3 gpm
12.5 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 2646 lbs
1200 kg
|
| Rear lift (at 24"/610mm): | 1720 lbs
780 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2376
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 67.3 inches
170 cm
|
| Weight: | 2,370 lbs
1075 kg
|
| Front tire: | 7-14
|
| Rear tire: | 11.2-24
|
| Full dimensions and tires ... |
| 7530 Serial Numbers |
| Location: | Serial number plate on the right side of the 7530 tractor frame, above the front axle.
|
photo of 7530 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Charging volts: | 12
|
| Battery CCA: | 500
|
| Battery volts: | 12
|
|
