Deutz-Allis 6240 Tractors

Deutz-Allis 6240
Power: 46 hp
Date of manufacture :
1986 - 1990
Production
Manufacturer:Deutz-Allis
Type:Utility tractor
Factory:Germany
Original price:$18,100
Variants
Deutz-Fahr DX 3.10
Deutz-Allis 6240 Power
Engine:46 hp
34.3 kW
PTO (claimed):43 hp
32.1 kW
Deutz-Allis 6240 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:mechanical drum
Cab:Four-post ROPS
Transmissions:8-speed partially synchronized
 16-speed two-speed power shift

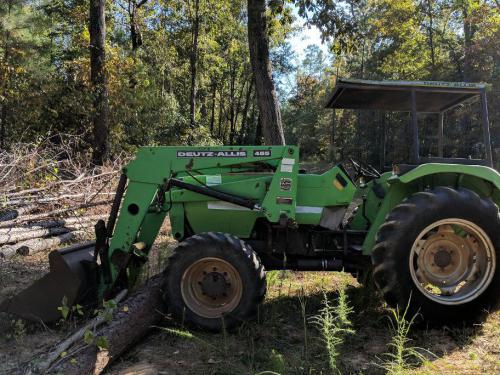

Photos
Deutz-Allis 6240 photos...
Capacity
Fuel:20 gal
75.7 L
Hydraulic system:4 gal
15.1 L
 7.5 gal
28.4 L *Optional
Hydraulics
Type:open center
Capacity:4 gal
15.1 L
 7.5 gal
28.4 L *Optional
Pressure:2538 psi
175.0 bar
Valves:1 to 3
Pump flow:9.8 gpm
37.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):4189 lbs
1900 kg
Front Hitch:II
Front lift:2205 lbs
1000 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:79 inches
200 cm
4WD Wheelbase:82 inches
208 cm
Weight:5776 to 6173 pounds
Front tire:7.50-16
2WD Rear tire:14.9-28
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
