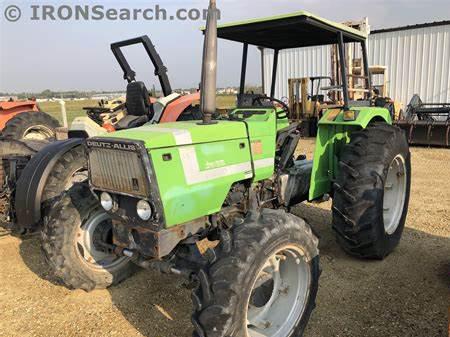

Deutz-Allis 6250 Tractors
 |
|
Power: 54 hp
Date of manufacture : 1986 - 1990 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Utility tractor
|
| Factory: | Germany
|
| Variants |
| 6250: | utility
|
| 6250V: | narrow
|
| Deutz-Fahr DX 3.30 |
| Deutz-Allis 6250 Power |
| Engine: | 54 hp
40.3 kW
|
| PTO (claimed): | 51 hp
38.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | mechanical disc
|
| Cab: | Four-post ROPS
|
| Transmissions: | 8-speed partially synchronized
|
| | 16-speed two-speed power shift
|
| Photos |
| | Deutz-Allis 6250 photos... |
| Capacity |
| Fuel: | 20 gal
75.7 L
|
| Hydraulic system: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 5291 gpm
20026.4 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 5291 lbs
2399 kg
|
| Front Hitch: | II
|
| Front lift: | 2205 lbs
1000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 79 inches
200 cm
|
| 4WD Wheelbase: | 82 inches
208 cm
|
| Weight: | 6018 to 6459 pounds
|
| Front tire: | 7.50-16
|
| 2WD Rear tire: | 16.9-30
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
