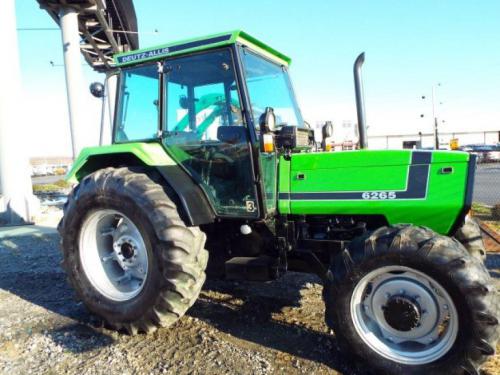

Deutz-Allis 6265 Tractors
 |
|
Power: 70 hp
Date of manufacture : 1986 - 1989 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Utility tractor
|
| Factory: | Germany
|
| Variants |
| Deutz-Fahr DX 3.70 |
| Deutz-Allis 6265 Power |
| Engine: | 70 hp
52.2 kW
|
| PTO (claimed): | 65 hp
48.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic drum
|
| Cab: | Four-post ROPS. StarCab optional.
|
| Transmission: | 12-speed partially synchronized
|
| Capacity |
| ROPS Fuel: | 24 gal
90.8 L
|
| Cab Fuel: | 28 gal
106.0 L
|
| Hydraulic system: | 4 gal
15.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4 gal
15.1 L
|
| Pressure: | 2358 psi
162.6 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 11.4 gpm
43.1 lpm
|
| Total flow: | 17.7 gpm
67.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 7275 lbs
3299 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 91.5 inches
232 cm
|
| 4WD Wheelbase: | 94 inches
238 cm
|
| Weight: | 6922 to 8333 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 18.4-30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
