Deutz-Allis 7110 Tractors
 |
|
Power: 122 hp[P]
Date of manufacture : 1986 - 1990 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Row-Crop tractor
|
| Deutz-Allis 7110 Power |
| PTO (claimed): | 110 hp
82.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | foot-operated rear
|
| | OPTICTRAC automatic front
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.
|
| Transmissions: | 15-speed fully synchronized
|
| | 20-speed
|
| Photos |

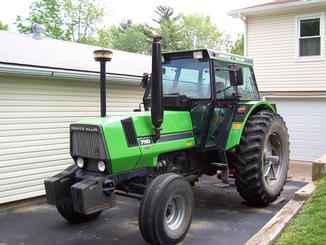

| | Deutz-Allis 7110 photos... |
| Capacity |
| Fuel: | 31 gal
117.3 L
|
| | 58 gal
219.5 L (optional)
|
| Hydraulic system: | 10 gal
37.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 10 gal
37.9 L
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Total flow: | 24 gpm
90.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 11,464 lbs
5200 kg
|
| Front Hitch: | II*Optional
|
| Front lift: | 6,393 lbs
2899 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 105.8 inches
268 cm
|
| 4WD Wheelbase: | 106.4 inches
270 cm
|
| Weight: | 9700 to 10670 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| Charging volts: | 14
|
| Battery volts: | 12
|
|
