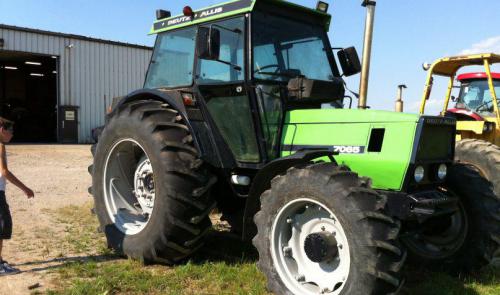

Deutz-Allis 7085 Tractors
 |
|
Power: 94 hp[P]
Date of manufacture : 1986 - 1990 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Row-Crop tractor
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | foot-operated rear
|
| | OPTICTRAC automatic front
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.
|
| Transmissions: | 15-speed fully synchronized
|
| | 20-speed
|
| Photos |
| | Deutz-Allis 7085 photos... |
| Capacity |
| Fuel: | 31 gal
117.3 L
|
| Hydraulic system: | 9.8 gal
37.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 9.8 gal
37.1 L
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 12.4 gpm
46.9 lpm
|
| Total flow: | 16.9 gpm
64.0 lpm
|
| Steering flow: | 7.1 gpm
26.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 8377 lbs
3799 kg
|
| Front Hitch: | II (optional)
|
| Front lift: | 3,968 lbs
1799 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Front PTO: | independent (optional)
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 92 inches
233 cm (2WD)
|
| | 94.5 inches
240 cm (4WD)
|
| Weight: | 8466 to 9900 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 7085 Serial Numbers |
| 1986: | 743 43030 (2WD ROPS)
|
| 1987: | 743 43242 (2WD ROPS)
|
| 1988: | 743 43459 (2WD ROPS)
|
| 1989: | 743 46199 (2WD ROPS)
|
| 1990: | 743 46464 (2WD ROPS)
|
| 1986: | 743 53065 (4WD ROPS)
|
| 1987: | 743 53826 (4WD ROPS)
|
| 1988: | 743 54784 (4WD ROPS)
|
| 1989: | 743 56577 (4WD ROPS)
|
| 1990: | 743 47417 (4WD ROPS)
|
| 1986: | 743 43006 (2WD Cab)
|
| 1987: | 743 43225 (2WD Cab)
|
| 1988: | --------- (2WD Cab)
|
| 1989: | --------- (2WD Cab)
|
| 1990: | 743 46464 (2WD Cab)
|
| 1986: | 743 53031 (4WD Cab)
|
| 1987: | 743 53815 (4WD Cab)
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Charging volts: | 14
|
| Battery volts: | 12
|
|
