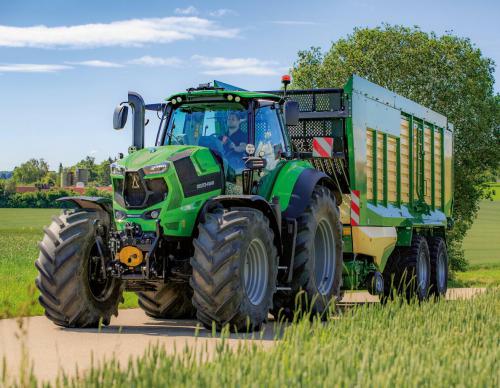

Deutz-Fahr 8280 TTV Tractors
|
|
Power: 268 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Row-Crop tractor
|
Deutz-Fahr 8280 TTV Power |
Engine (gross): | 268 hp 199.8 kW
|
Engine (max): | 287 hp 214.0 kW
|
Deutz-Fahr 8280 TTV Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | electro-hydraulic front and rear
|
Steering: | power
|
Brakes: | wet disc
|
Trailer brakes: | hydraulic*Optional
|
| pneumatic*Optional
|
Cab: | Cab standard with air-conditioning.
|
Transmission: | continuously-variable transmission
|
Hydraulics |
Type: | closed center
|
Rear valves: | 4 or 5
|
Front valves: | 1 or 2
|
Steering flow: | 15.3 gpm 57.9 lpm
|
Tractor hitch |
Rear lift: | 24471 lbs 11100 kg
|
Front lift: | 12015 lbs 5450 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540E/1000/1000E
|
Front PTO: | independent*Optional
|
Front RPM: | 1000/1000E
|
Dimensions & Tires |
Wheelbase: | 114.9 inches 291 cm
|
Weight: | 20944 lbs 9500 kg
|
Front tire: | 540/65R34
|
Rear tire: | 650/85R38
|
Full dimensions and tires ... |
Electrical |
Charging system: | alternator
|
Charging amps: | 200
|
Charging volts: | 12
|
Battery volts: | 12
|
|
