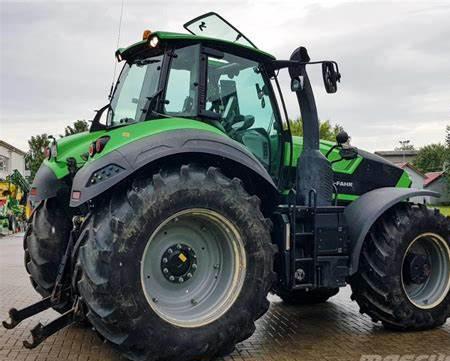

Deutz-Fahr 9290 TTV Tractors
 |
|
Power: 277 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Row-Crop tractor
|
| Deutz-Fahr 9290 TTV Power |
| Engine (gross): | 277 hp
206.6 kW
|
| Engine (max): | 295 hp
220.0 kW
|
| Deutz-Fahr 9290 TTV Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | automatic front and rear differential locks
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | MaxiVision II Cab standard with air-conditioning.
|
| Hydraulics |
| Type: | closed center load sensing
|
| Valves: | 4 to 8
|
| Pump flow: | 42.3 gpm
160.1 lpm
|
| | 55.5 gpm
210.1 lpm *Optional.
|
| Tractor hitch |
| Rear lift: | 26455 lbs
11999 kg
|
| Front lift: | 11023 lbs
5000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540E/1000/1000E
|
| Front PTO: | independent*Optional.
|
| Clutch: | electro-hydraulic
|
| Front RPM: | 1000
|
| | 1000E
|
| Dimensions & Tires |
| Wheelbase: | 123.4 inches
313 cm
|
| Weight: | 26455 lbs
11999 kg
|
| Front tire: | 650/65R34
|
| Rear tire: | 710/75R42
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery volts: | 12
|
| Battery AH: | 180
|
|
