Deutz-Fahr DX 3.90 Tractors
 |
|
Power: 75 hp
Date of manufacture : 1985 - 1989 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Factory: | Germany
|
| Deutz-Fahr DX 3.90 Power |
| Engine: | 75 hp
55.9 kW
|
| Deutz-Fahr DX 3.90 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic drum
|
| Cab: | Four-post ROPS with canopy. StarCab optional.
|
| Transmissions: | 12-speed partially synchronized
|
| | 24-speed two-speed power shift
|
| Photos |

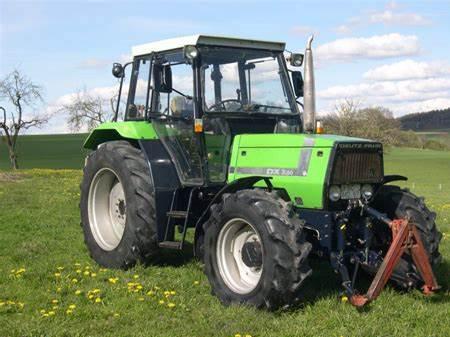

| | Deutz-Fahr DX 3.90 photos... |
| Capacity |
| ROPS Fuel: | 23 gal
87.1 L
|
| Cab Fuel: | 22.5 gal
85.2 L
|
| Hydraulic system: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Pressure: | 2538 psi
175.0 bar
|
| Rear valves: | 1 to 3
|
| Front valves: | 2*Optional
|
| Pump flow: | 17.7 gpm
67.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 7275 lbs
3299 kg
|
| Front Hitch: | II*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Front PTO: | independent*Optional
|
| Clutch: | dry disc
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 91.5 inches
232 cm
|
| 4WD Wheelbase: | 94 inches
238 cm
|
| Weight: | 6922 to 8333 pounds
|
| Front tire: | 10.00x16
|
| 2WD Rear tire: | 18.4x30
|
| Full dimensions and tires ... | |
