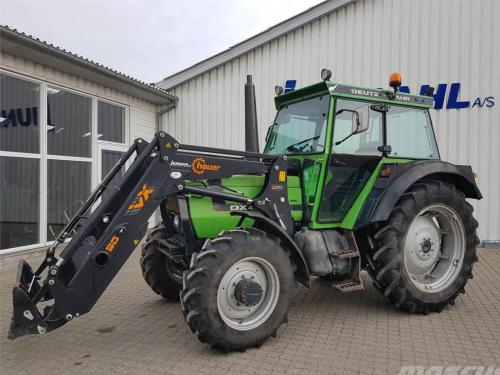

Deutz-Fahr DX 4.10 Tractors
|
|
Power: 68 hp
Date of manufacture : 1985 - 1988 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr DX 4.10 Power |
Engine: | 68.4 hp 51.0 kW
|
Deutz-Fahr DX 4.10 Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | hydraulic drum
|
Transmissions: | 15-speed synchronized
|
| 20-speed creeper
|
Hydraulics |
Pump flow: | 10.6 gpm 40.1 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 8385 lbs 3803 kg
|
Front Hitch: | II
|
Front lift: | 3968 lbs 1799 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Front PTO: | independent
|
Front RPM: | 1000
|
Dimensions & Tires |
Wheelbase: | 94.5 inches 240 cm
|
Weight: | 8642 lbs 3920 kg
|
Front tire: | 13.6-24
|
Rear tire: | 18.4-34
|
Full dimensions and tires ... | |
