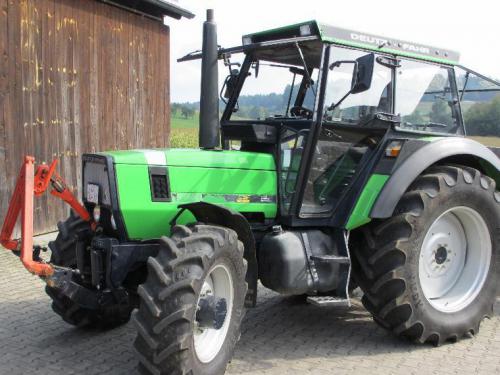

Deutz-Fahr DX 4.50 Tractors
|
|
Power: 80 hp
Date of manufacture : 1983 - 1989 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr DX 4.50 Power |
Engine: | 80.5 hp 60.0 kW
|
Deutz-Fahr DX 4.50 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | hydraulic drum
|
Transmissions: | 15-speed synchronized
|
| 20-speed creeper
|
Hydraulics |
Pressure: | 2538 psi 175.0 bar
|
Pump flow: | 10.6 gpm 40.1 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 11465 lbs 5200 kg
|
Front Hitch: | II
|
Front lift: | 3968 lbs 1799 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Front PTO: | independent
|
Front RPM: | 1000
|
Dimensions & Tires |
2WD Wheelbase: | 91.7 inches 232 cm
|
4WD Wheelbase: | 94.5 inches 240 cm
|
Weight: | 8069 to 8796 pounds
|
Front tire: | 10.00-16
|
2WD Rear tire: | 16.9-38
|
Full dimensions and tires ... | |
