| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Total built: | 46,146
|
| Original price: | $6,100 (1967)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic dry double disc
|
| Cab: | Cab optional, A/C available starting in 1966
|
| Transmissions: | 8-speed
|
| | 16-speed
|

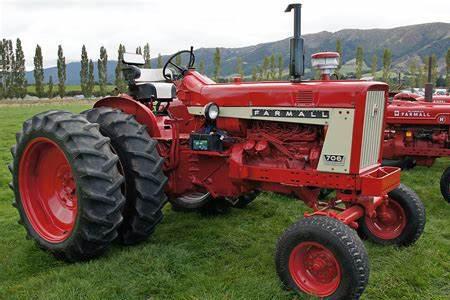

| Photos |
| | Farmall 706 photos... |
| Capacity |
| Fuel: | 33 gal
124.9 L (gas/diesel)
|
| | 39 gal
147.6 L (LP gas)
|
| Hydraulic system: | 17 gal
64.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 17 gal
64.3 L
|
| Valves: | 1 or 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| | 17 gpm
64.3 lpm (optional)
|
| | 3 gpm
11.4 lpm (PTO pump)
|
| Steering flow: | 9 gpm
34.1 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Type: | IH Fast Hitch
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 1000
|
| Engine RPM: | 540@2100
1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 97.5 inches
247 cm (2WD)
|
| | 94.75 inches
240 cm (4WD)
|
| Weight: | 7530 to 9160 pounds
|
| Front tire: | 6.50-16
|
| Rear tire: | 15.5-38
|
| 706 Serial Numbers |
| Location: | Serial number plate on the left side of the 706 clutch housing.
|
photo of 706 serial number
| | 1963: | 501
|
| 1964: | 7073
|
| 1965: | 21162
|
| 1966: | 30288
|
| 1967: | 38521
|
| Final: | 46647
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 1055
|
| Speed: | 3,038 ft/min
925.98 meters/min
|
| Electrical |
| Ground: | negative
|
| Charging amps: | 25 (generator)
|
| | 32 (alternator)
|
| Batteries: | 1 (gas)
|
| | 2 (diesel)
|
| Battery volts: | 12 (gas)
|
| | 6 (diesel)
|
| Battery AH: | 60 (gas/LP)
|
| | 130 (diesel)
|
|
