| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Factories: | Chicago, Illinois, USA
|
| | Rock Island, Illinois, USA
|
| Total built: | 134,650
|
| Variants |
| Fairway: | wide steel wheels for turf
|
| Farmall Regular Power |
| Plows: | 2
|
| Drawbar (tested): | 13.27 hp
9.9 kW
|
| Belt (tested): | 20.05 hp
15.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual with automatic engagement of turning brakes
|
| Cab: | Open operator's seat
|
| Transmission: | 3-speed
|
| Photos |

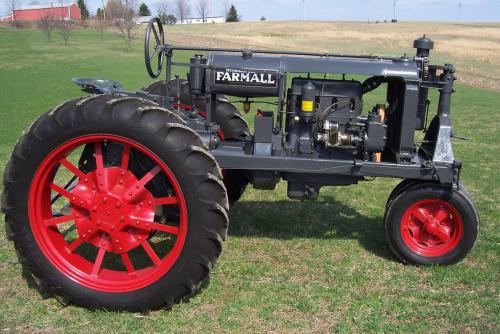

| | Farmall Regular photos... |
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 535
|
| Dimensions & Tires |
| Weight: | 4,000 lbs
1814 kg
|
| Front tire: | 25x4
|
| Rear tire: | 40x6
|
| Full dimensions and tires ... |
| Regular Serial Numbers |
| Location: | Tractor tool box.
|
| 1924: | 501
|
| 1925: | 701
|
| 1926: | 1539
|
| 1927: | 5969
|
| 1928: | 15471
|
| 1929: | 40370
|
| 1930: | 75691
|
| 1931: | 117784
|
| 1932: | 131872
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 14 inches
35 cm
|
| Width: | 6.5 inches
16 cm
|
| RPM: | 693
|
|
