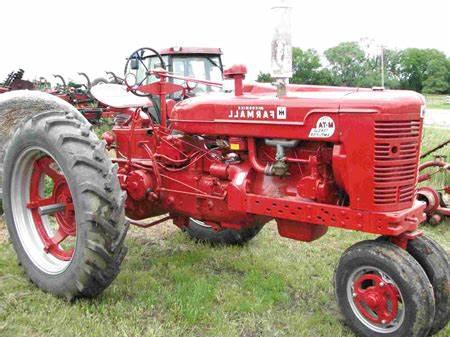

Farmall Super AM Tractors
 |
|
Power: 0
Date of manufacture : 1953 - 1957 |
| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Factory: | Geelong, Australia
|
| Variants |
| Super AW-6: | kerosense engine, standard front
|
| Super AWD-6: | diesel engine, standard front
|
| Super AM: | kerosene engine, row-crop front
|
| Super AMD: | diesel engine, row-crop front
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Brakes: | differential mechanical drum
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed unsynchronized gear
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Engine RPM: | 540@1450
|
| Dimensions & Tires |
| Wheelbase: | 88.5 inches
224 cm
|
| Weight: | 5293 to 6669 pounds
|
| Front tire: | 6.00x16
|
| Rear tire: | 12x38
|
| Full dimensions and tires ... |
| Super AM Serial Numbers |
| Location: | Tractor's clutch housing on the right side.
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 899
|
| Speed: | 2588 ft/min
788.82 meters/min
|
| Electrical |
| Charging system: | generator
|
|
