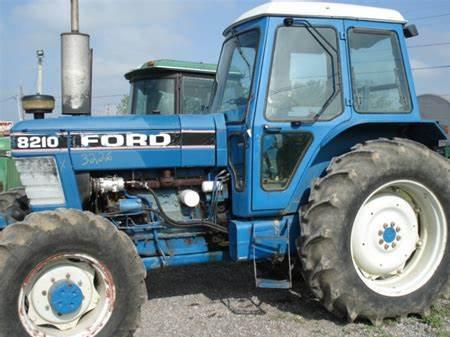

Ford-New Holland 8210 Tractors
 |
|
Power: 115 hp
Date of manufacture : 1985 - 1991 |
| Production |
| Manufacturer: | Ford-New Holland
|
| Type: | Row-Crop tractor
|
| Original price: | $49,000 (1991 )
|
| Ford-New Holland 8210 Power |
| Engine (gross): | 115 hp
85.8 kW
|
| PTO (claimed): | 95 hp
70.8 kW
|
| Ford-New Holland 8210 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Cab standard with air-conditioning. Optional AM/FM radio.
|
| Transmission: | 16-speed two-speed power shift
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 to 4
|
| SCV flow: | 18.2 gpm
68.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position control and top-link draft sensing
|
| Rear lift (at 24"/610mm): | 4435 lbs
2011 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1902
1000@2049
|
| Dimensions & Tires |
| Wheelbase: | 109.6 inches
278 cm
|
| Weight: | 8730 to 9370 pounds
|
| Front tire: | 14.9-24
|
| Rear tire: | 18.4-34
|
| 8210 Serial Numbers |
| Location: | Data plate inside engine compartment.
|
| 1982: | C681910
|
| 1983: | C695880
|
| 1984: | C713459
|
| 1985: | C737800
|
| 1986: | C754100
|
| 1987: | C768000
|
| 1988: | BB06622
|
| 1989: | BB80260
|
| 1990: | BC26239
|
| 1991: | BC68791
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 72
|
| Battery volts: | 12
|
| Battery AH: | 128
|
|
