Navigation: Home > Ford-New Holland > 8730

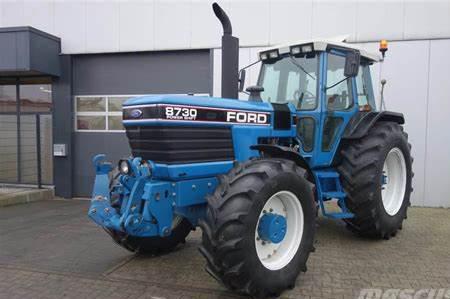

Ford-New Holland 8730 Tractors

Ford-New Holland 8730
Power: 155 hp[P]
Date of manufacture :
1990 - 1993
Production
Manufacturer:Ford-New Holland
Type:Row-Crop tractor
Factory:Antwerp, Belgium
Original price:$56,500 (1993)
Ford-New Holland 8730 Power
PTO (claimed):140 hp
104.4 kW
Drawbar (tested):124.84 hp
93.1 kW
PTO (tested):140.68 hp
104.9 kW
Ford-New Holland 8730 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:optional cab with heat and A/C
Transmissions:18-speed
 16-speed
 8-speed
Capacity
Fuel:75 gal
283.9 L
 24.5 gal
92.7 L (auxiliary tank)
Steering:2 qts
1.9 L
Hydraulics
Type:open center gear pump, dual pumps optional
Pressure:2500 psi
172.4 bar
Valves:2 to 4
Pump flow:20 gpm
75.7 lpm
 28.6 gpm
108.3 lpm (dual pumps)
SCV flow:16.9 gpm
64.0 lpm
 19 gpm
71.9 lpm (dual pumps)
Steering cap.:2 qts
1.9 L
Steering press.:2025 psi
139.6 bar
Tractor hitch
Rear Type:3/2
Control:position and draft control
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:111 inches
281 cm
Weight:12185 to 14710 pounds
Front tire:11.00-16
Rear tire:18.4/15-38
Electrical
Charging system:alternator
Charging amps:90
Battery volts:12
